Flake and Granulation of Resin

The resin granulation is a kind of equipment which transports the molten resin materials (C5, C9 petroleum resin, RD resin, phenolic resin, etc.) from the storage tank to the distributor through the material pump and filter. The distributor drips the molten liquid resin materials into drops in the form of liquid drops, row by row, onto the cooling steel belt which moves at a constant speed below. Cooling water is sprayed below the cooling steel belt, and resin liquid is sprayed above the steel belt after cooling, the droplets solidify into flat hemispherical particles, which are scraped off by the blanking scraper and flow into the hopper.

Advantages of resin granulation: continuous operation, large output of single machine; less vulnerable parts of equipment, low operation cost, stable quality, low failure rate; sealing design of the whole machine, dust and pollution prevention.

Equipment length

Equipment width

Temperature

18m - 33m

1800m - 2100m

≤220℃

Graular diameter

Graular height

Capacity

4mm - 6mm

2.5mm – 3.5mm

1000kg/hr – 3000kg/hr


Resin flake machine is to make use of the low melting point characteristics of materials, evenly distribute the molten liquid on the steel belt moving at a constant speed under the overflow distributor, and under the cooling effect of the continuous spraying device set under or above the steel belt, the materials can be cooled and solidified in the process of moving and conveying, so as to achieve the purpose of laminating.

The main features of resin flaker : rapid solidification of materials; little broken dust; adjustment or control of production speed according to material characteristics and production demand; multi-stage temperature control.

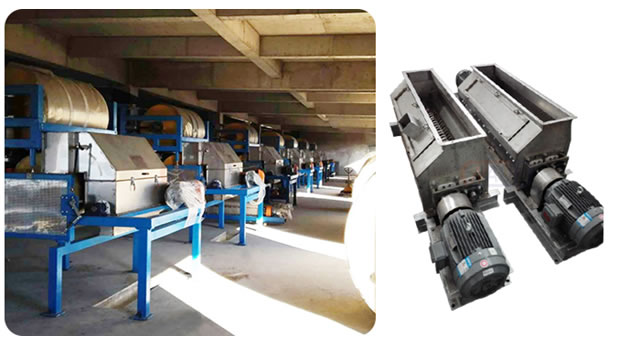

In view of the problem of great dust after crushing with double steel belt flaker in the market, our company has developed a "dust-free crusher". After actual use, the crushed materials are finer and the dust is very small.


Gap between crushing roller and blade

Crushing particle size

Output of broken particles

1mm

7mm – 8mm

＞8t

Common models of double steel belt equipment

Model

Capacity

LT-DBC-1.5-20

4t/h

LT-DBC-1.5-25

5t/h

LT-DBC-1.5-30

6t/h
